Smaller built-in connector for Profinet

0
286

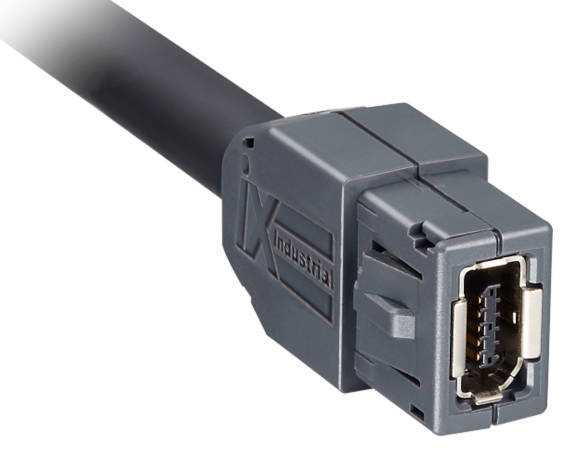

"Indicated as the new standard interface connector for Ethernet applications from Profinet, the ix series of industrial I/O connectors have optimized shielding against electromagnetic interference and electrostatic discharge for data transfer rates up to 10 Gbps, said company, adding: “In addition to direct connection, the in-line connector supports panel mounting.”

It's called the ix40G and accommodates two panel thicknesses: 1.5mm and 2mm, and like the 10Gbps CAT6A cable, supports 1Gbps CAT5e cable.

Plugs are available in IDC and soldered types, and the terminal block and cable clamps are integrated into a solid metal housing for electromagnetic compatibility and isolation of this connection from the cable load. p>

Source: electronicsweekly.com
